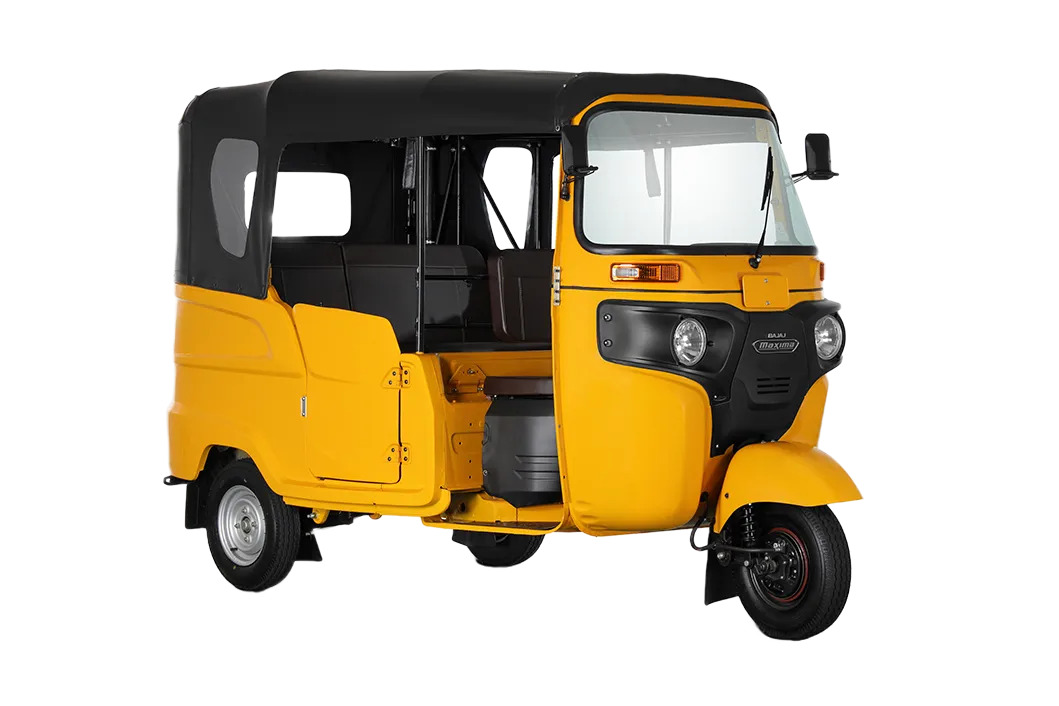

Bajaj Maxima Z
Product Features
Performance: DTS-i Technology

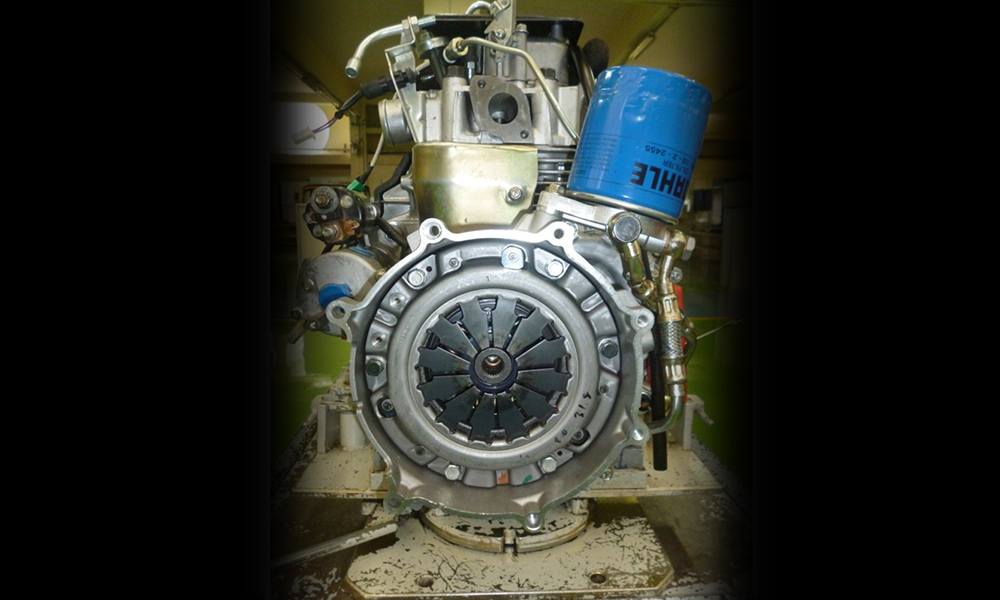

MAXIMUM Engine
Maximize earnings with a 236cc DTS-i engine that produces 8.19kW and torque of 20.45Nm to power extra trips with full cargo or passenger payloads.
Design: Upgraded Features

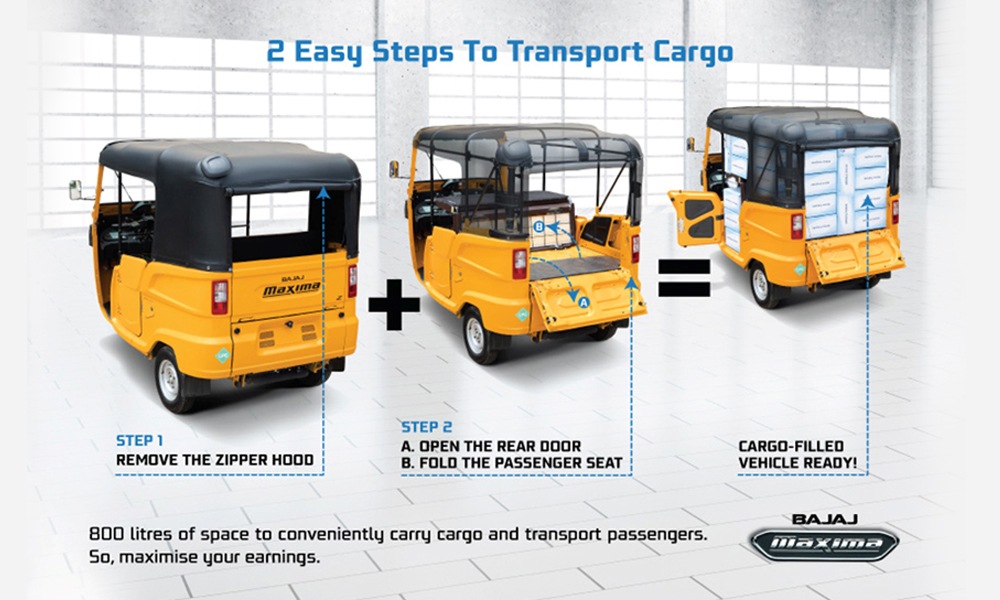

Cargo Conversion
Expand Maxima Z's storage to 800 liters by unzipping the back hood, opening the rear door, and folding the passenger seat inward.
Design: Upgraded Features
Complete Vehicle Experience
The Maxima Z offers four-wheeler appeal with an upright windshield, better handlebar positioning, more legroom, improved pedals, twin suspension, and bucket seats.
Technology: Reliability
CV Shaft
Go maintenance-free for up to 100,000 kms with a high-tech CV shaft that endures heavy duty performance.
Safety Interior

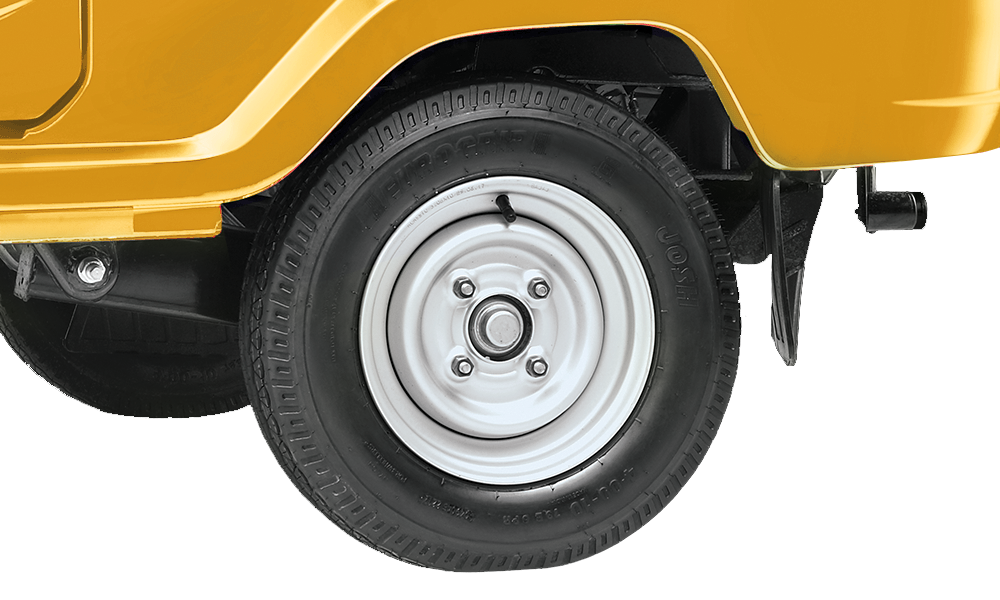

10” tyres with front fork
Superior car-like comfort from 10” tyres, with a first-in-class front fork that improves the experience for both the driver and passengers
Specifications
Engine
- Type Four Stroke, Air & Oil cooled, Twin Spark plug, S. I. Engine
- Max Torque 20.45 Nm @ 3500 rpm
- Max Power 8.19 KW @ 4500 rpm
- Displacement 236.2 cc
- Clutch Wet, Multiplate
- Max Speed 60 km/h
Brakes & Tyres
- Brake Size Front Hydraulic Expanding Friction Shoe Type with TMC – Foot operated
- Brake Size Rear Hydraulic Expanding Friction Shoe Type with TMC – Foot operated
- Brake Type Front Hydraulically actuated brake shoes – Leading & Trailing Type
- Tyre Front 4.00 - 10, 6 P.R.
- Tyre Rear 4.00 - 10, 6 P.R.
Electricals
- System 12V DC
- Battery 12V 32AH
- Head Lamps 12V35/35W (HS1)
- Tail Lamps 12V 21/5W
- Reverse Lamps 12 V 10W
Vehicle
- Frame Type Monocoque chassis with central beam and cross member welded
- Wheel Base 2000 mm
- Length x Width x Height 2825 mm x 1350 mm x 1780 mm
- Ground Clearance 200 mm
- Suspension Front Fork with Leading Arm and Anti-dive link, twin Hydraulic shock absorbers and Helical springs
- Kerb Weight 420 Kgs
- Fuel Tank 8 L
- Suspension Rear Independently sprung rear wheels by trailing arms with helical springs and hydraulic shock absorbers
Product Documentation
Product Brochure
Download our detailed product brochure for comprehensive information about features and specifications.
Download Brochure
Owner's Manual
Access the complete owner's manual for detailed instructions on using and maintaining your product.
Download Manual
