Maxima Cargo
Product Features
Performance: DTS-i Technology

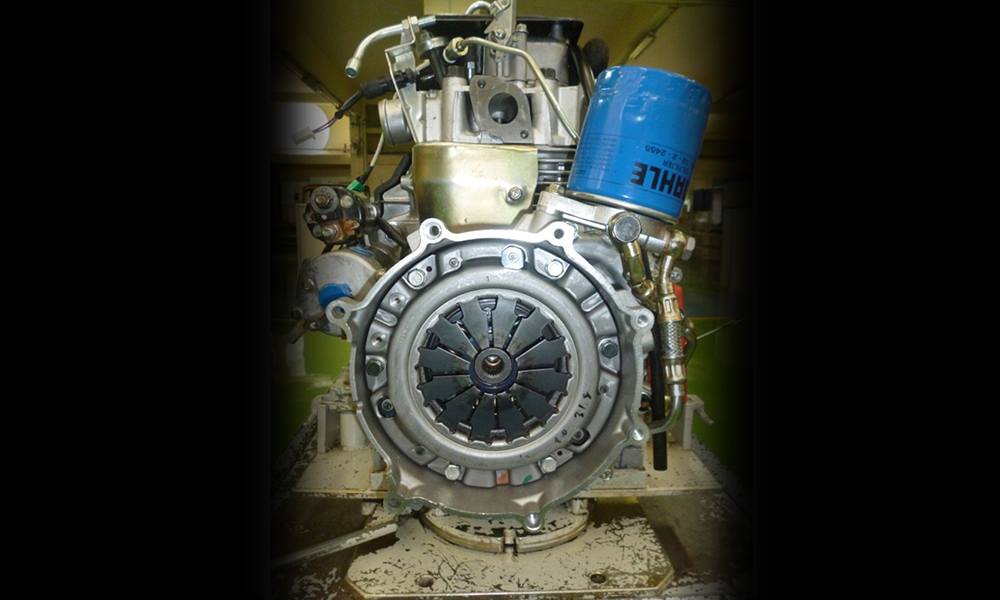

Powerful Engine
The Maxima Cargo is powered by the 470 cc Kubota Diesel Engine or a 236 CC DTSi petrol engine. Apart from being incredibly powerful, the Maxima Cargo also gives you unmatched ability to carry all types of cargo.
Design: Upgraded Features

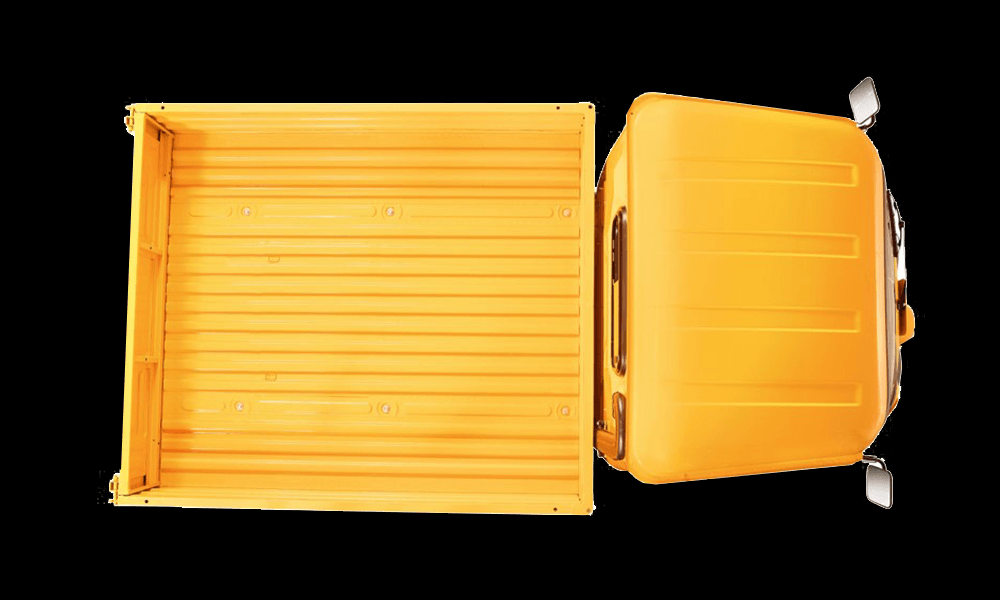

Max Dimensions
The Maxima Cargo's wide, long trays increase load capacity, while its long wheelbase ensures perfect balance. High ground clearance allows smooth manoeuvring across rough terrains, optimizing your business needs.
Design: Upgraded Features

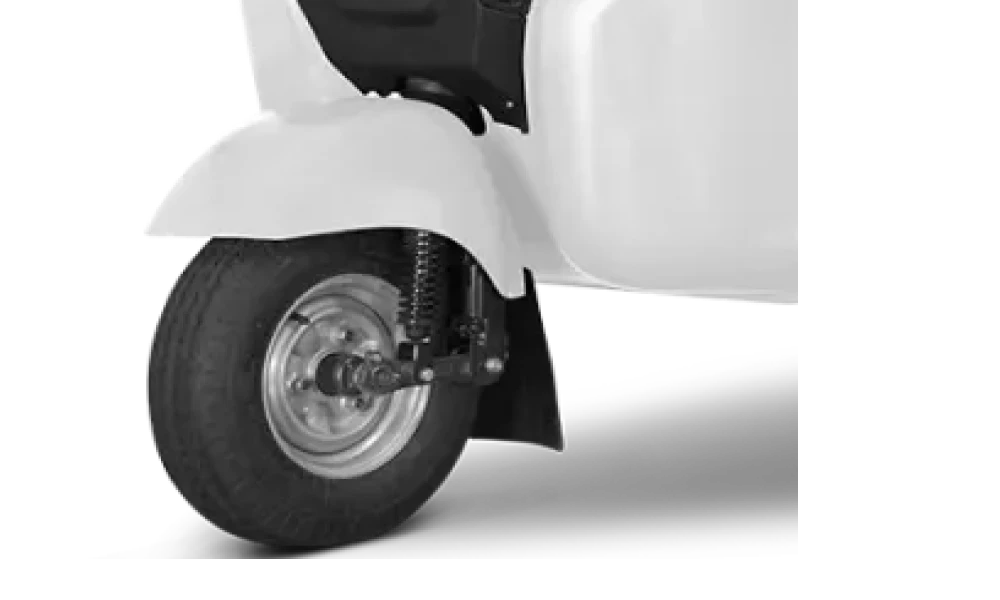

Front Fork
The first-in-class front fork with twin shock absorbers gives you a car-type driving comfort on any type of road.
Technology: Reliability

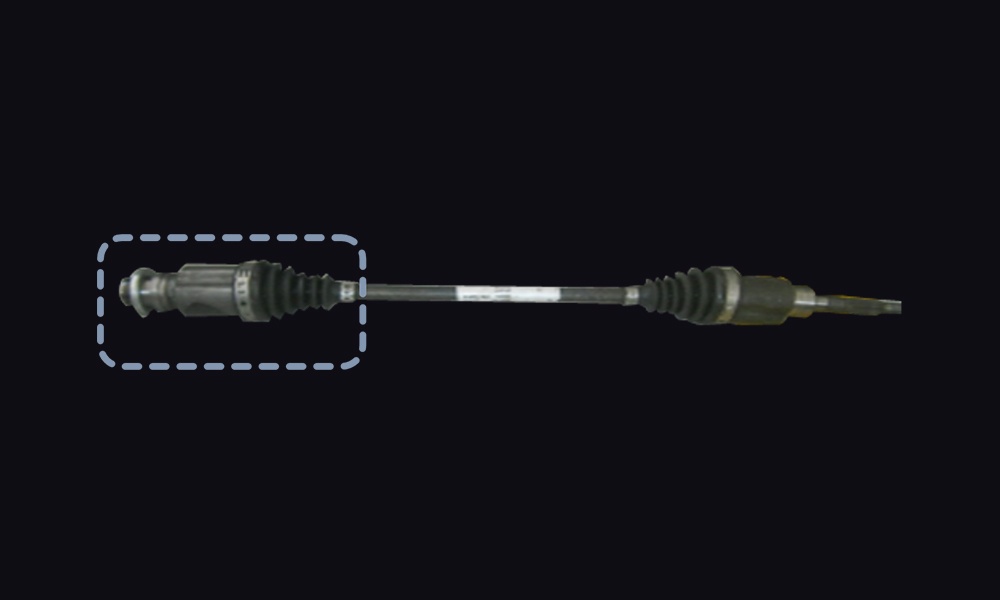

CV Shaft
The new hi-tech Constant Velocity Shaft with tripod bush joints gives you a maintenance-free drive for 100,000 km. It also offers you a smooth drive even with heavy loads.
Technology: Reliability

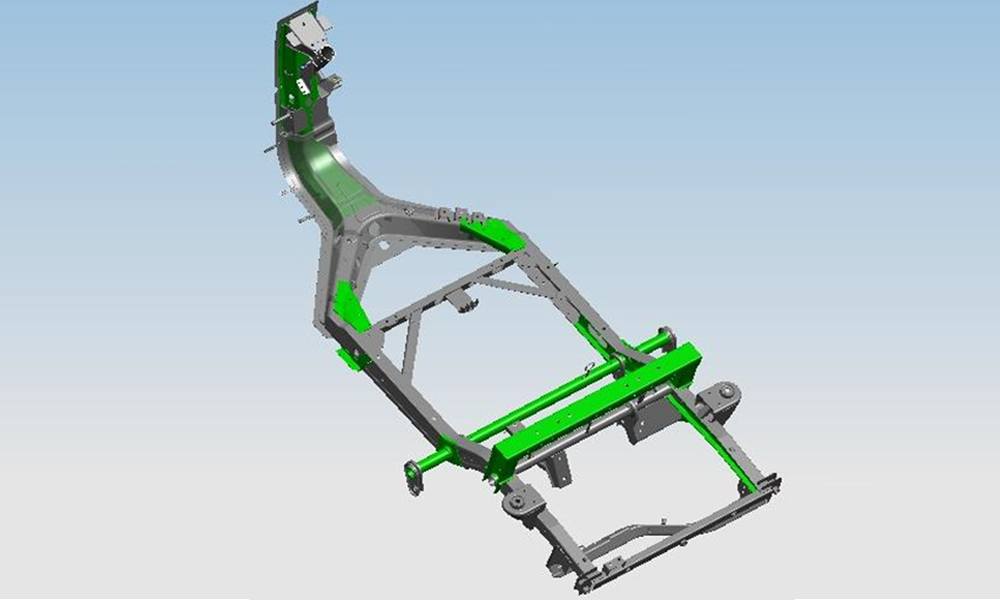

Strong Chassis
Maxima Cargo boasts a reinforced high-strength steel alloy chassis, enhancing rigidity, load capacity, and longevity.
Safety: Interior

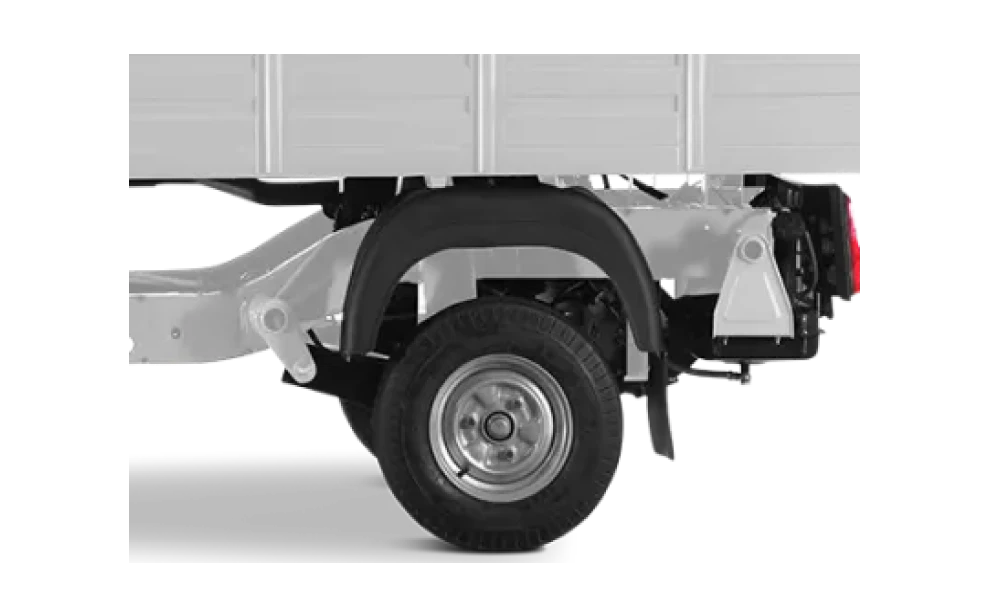

Bigger 10" Tyres
The Maxima range with bigger tyres enable car type driving comfort over all types of road conditions.
Specifications
<
Engine
- Type Four stroke, air & oil cooled
- Displacement 236 cc
- Clutch Wet, multiplate
- Max Power 10.5 Ps @4500 rpm
- Max Speed 58 KM/HR
- Max Torque 19 Nm @ 3500 rpm
Brakes & Tyres
- Brake Type Front Hydraulically actuated brake shoes – Leading & Trailing Type
- Brake Type Rear Hydraulic expanding friction shoe - Leading Trailing Type
- Tyre Front 4.50 - 10, 8 Ply
- Tyre Rear 4.50 - 10, 8 Ply
Vehicle
- Frame Type Monocoque chassis with central beam and cross member welded
- Fuel Tank 12 L
- Ground Clearance 190 mm
- Kerb Weight 475 Kgs
- Length x Width x Height 3230 mm x 1493 mm x 1818 mm
- Suspension Front Fork with Leading arms and Anti-dive link, twin hydraulic shock absorbers and helical springs
- Suspension Rear Independently sprung rear wheels by trailing arms with helical springs and hydraulic shock absorbers
- Wheel Base 2125 mm
Electricals
- Battery 12V 32 Ah
- Head Lamps 12V 35/35W, Twin Headlamps
- System 12 V DC
- Tail Lamps 12V 21/5W or 18/5W
Product Documentation
Product Brochure
Download our detailed product brochure for comprehensive information about features and specifications.
Download Brochure
Owner's Manual
Access the complete owner's manual for detailed instructions on using and maintaining your product.
Download Manual
